Lattice mast construction system
Traffic safety without additional safety barriers
Our lattice mast construction system IBO-TriFix is currently the only system in Germany to meet the requirements of the EU standard DIN EN 12767. The system, comprising lattice mast and concrete foundation, can be used without additional temporary concrete road barriers or stationary crash barriers - for flexible and efficient traffic safety.
- Can be used without additional restraint systems
- Complies with EU standard DIN EN 12767 for passive safety
- Stable even with maximum traffic sign surface and photovoltaic system
- Complies also with the DIN EN 1991-1-4 wind load standard
- Maximum flexibility for temporary road work zones
Flexible traffic safety with the lattice mast construction system

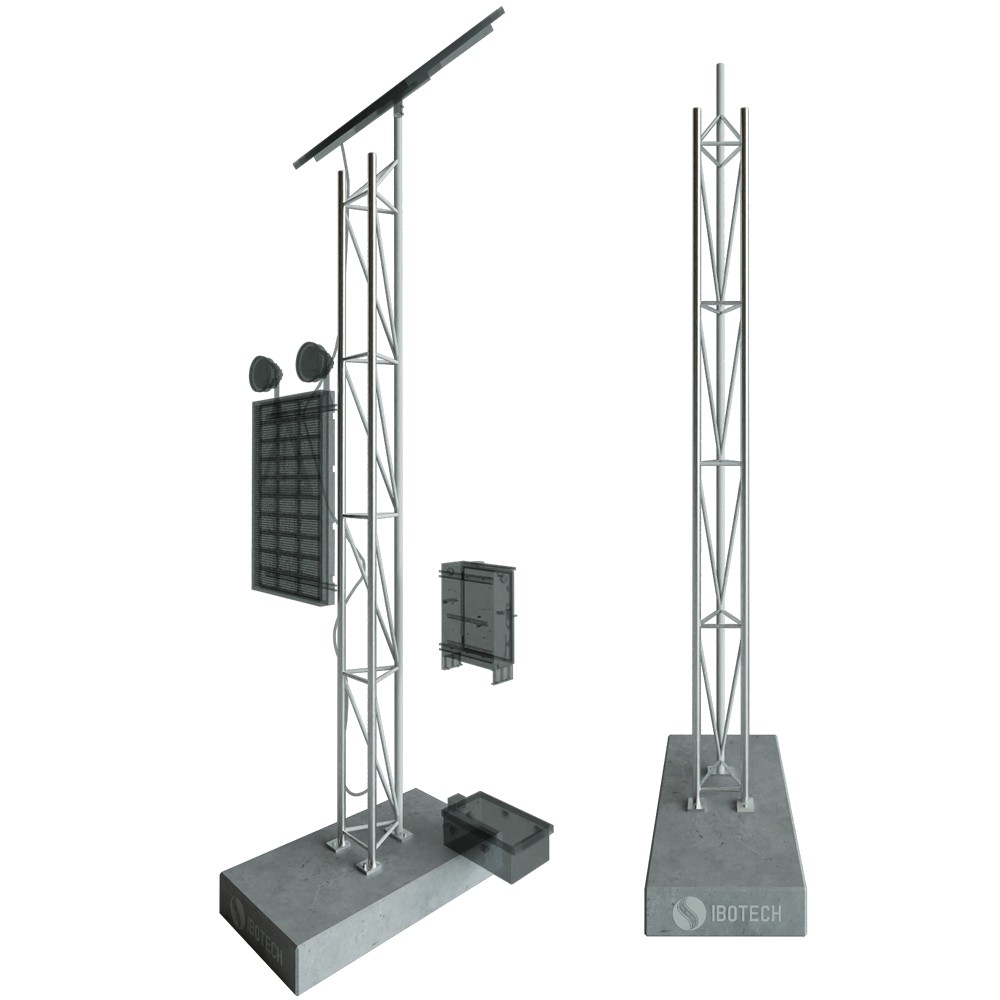

The lattice mast construction system IBO TriFix was extensively tested in real crash tests. The tests were executed with fully assembled system components, including traffic signs and optional photovoltaic system. The result: The system with our concrete foundation meets the high safety requirements.
Without the need of additional temporary road barriers or stationary crash barriers the installation of the lattice mast system is much more simple and easier to adapt to different road work situations. This contributes to more efficient traffic safety and optimized safety measures.
| Product description | Lattice mast construction system |
|---|---|
| Name | IBO-TriFix |
| Technical dimensions | Total height (from top edge of prefabricated foundation): 5.62 meters, truss center points: 0.35 meters x 0.42 meters / 90 kilograms |
| Foundation - material and dimensions | Precast concrete foundations 2 x 1 x 0.3 (length x width x height in meters) 2.6 x 1.2 x 0.3 (length x width x height in meters) |
